Woodpeckers
VerifiedWoodpeckers designs and manufactures precision CNC-machined woodworking layout tools in Strongsville, Ohio. Founded in 1988, the company has produced every square, triangle, rule, and multifunction layout tool in-house at their Ohio facility since 1993, where all machining, laser-engraving, assembly, and packing is performed.
Products by Woodpeckers
12 products listed

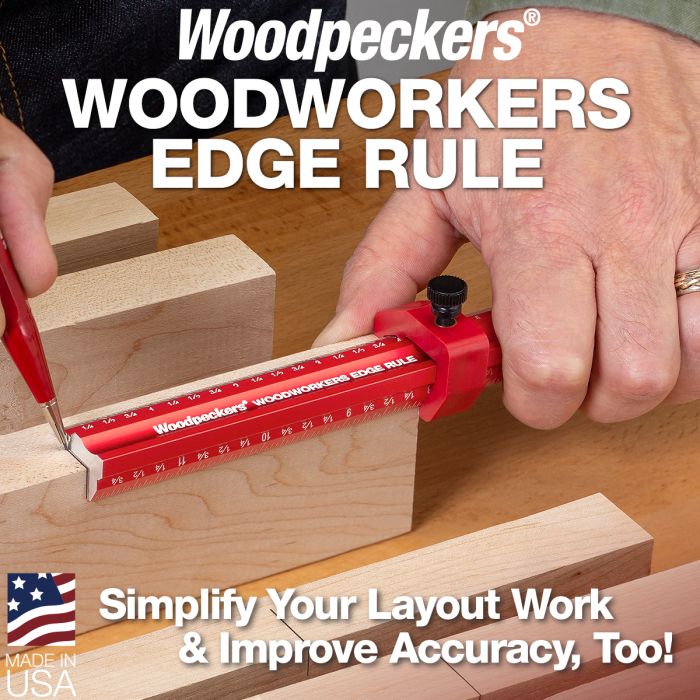

$20-$30Woodworkers Edge Rule 6 Inch
An L-shaped 6-inch aluminum rule that wraps around the edge of stock with a short 3/8-inch leg and a longer 3/4-inch leg, so scales sit on both face and edge at the same time. Beveled edges put the laser-engraved graduations against the work to minimize parallax. Held to ±0.004 inch accumulated error and finished in Woodpeckers' anodized red.

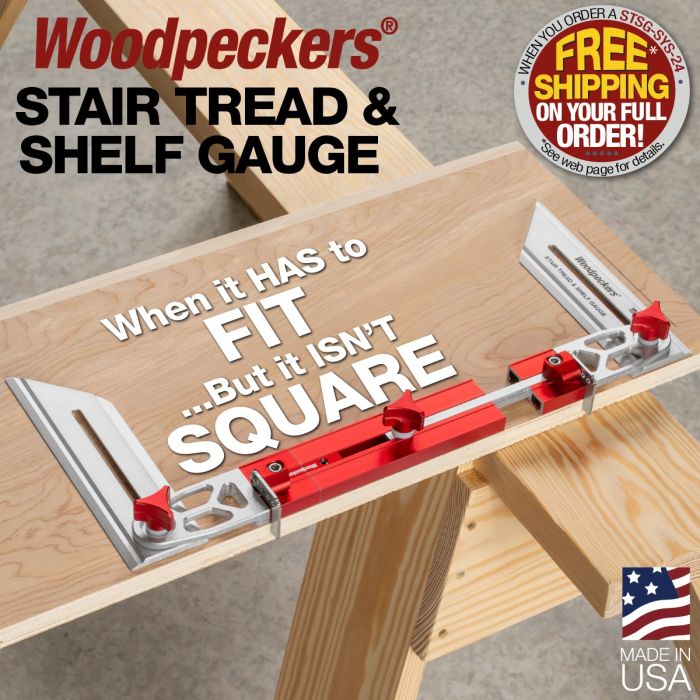

$240-$315Stair Tread & Shelf Gauge
An adjustable template tool for shelves, stair treads, and captured panels in out-of-square spaces. Two beveled aluminum ends swing to capture the angle of adjoining walls; an extendable beam adjusts from 17 to 64 inches; two edge flip-stops register the gauge against stock for marking and cutting. Kit includes four 12-inch beams, one 6-inch beam, two bevel ends, two flip-stops, connectors, and knobs.

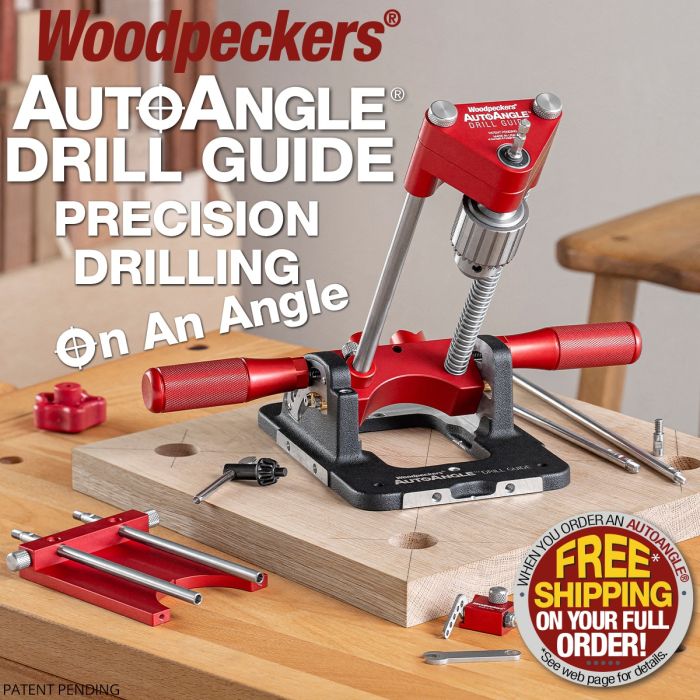

$540-$735AutoAngle Drill Guide Deluxe
A portable drill guide that handles angled holes from vertical to 40°. A protractor base places the virtual pivot point at the material surface so the drill bit's entry point stays put as the angle changes. Includes machined reference points, a fence-and-stop system on extendable guide rods, large hand-grips, and vee-blocks plus center-drilling buttons for round stock.

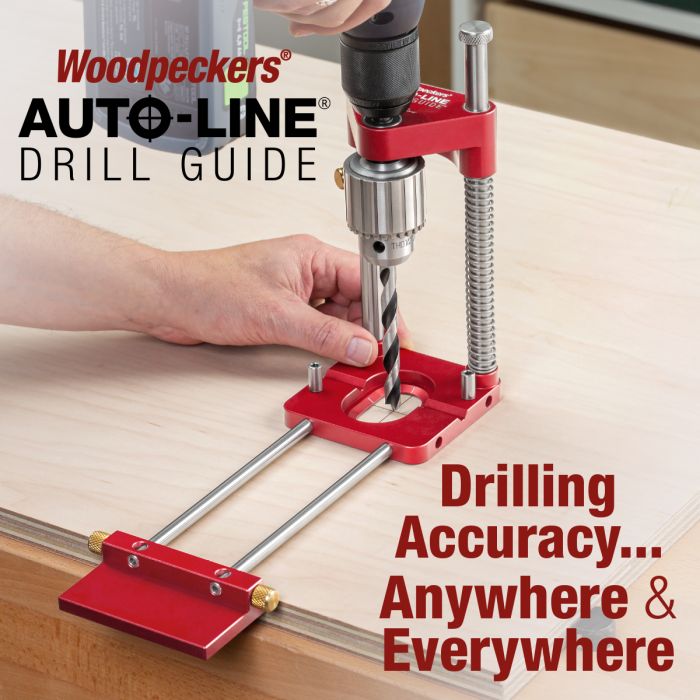

$300-$420Auto-Line Drill Guide
A portable drill guide that holds a hand drill perfectly perpendicular to the workpiece without a drill press. A 1/2-inch chuck rides on sealed ball bearings up steel guide rods; an adjustable fence with optional centering pins indexes holes up to 3-1/8 inches from a board edge. Accepts bits up to 3/4 inch directly, or up to 2 inches with the column caps removed.
$70-$85Drill Press Protractor
A vernier-scale angle gauge that mounts in a drill press chuck to dial in table angles to 5 minutes of a degree (1/12°). Stainless steel and anodized aluminum construction; dual-sided scale shows degrees-and-minutes on one face and quarter-degree graduations on the other. Includes a machined vee base for centerline dowel drilling and works on band saws, miter gauges, and bevel gauges.

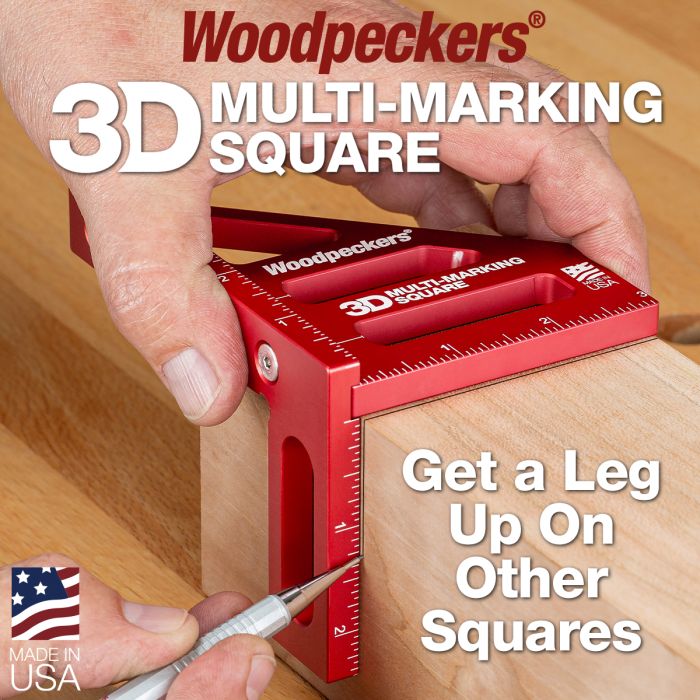

$65-$803D Multi-Marking Square
An aircraft-grade aluminum square with two full-length legs that mark face and edge of stock at the same dimension simultaneously. Precision-milled steps at 1/4, 3/8, and 1/2 inch enable measureless marking; a centerline groove guides mortise-and-tenon layout. Stands 4-1/2 inches tall and includes 3/4 and 1 inch setup blocks for machinery.
$110-$130Stainless Steel Square 6 Inch (642SS)
A 6-inch precision square with a one-piece stainless steel core verified to ±0.0085° angular tolerance. The thin 1/16-inch blade reduces parallax error during layout, and laser-engraved scales include 1/16-inch scribing guides for repeatable marking. Cheeks form a shoulder that keeps the square flat against the workpiece.

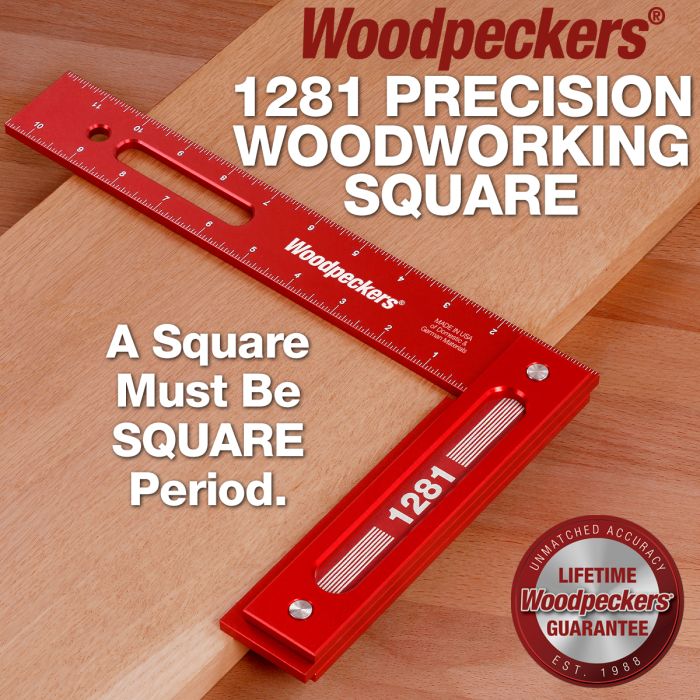

$135-$1651281 Precision Woodworking Square 12" x 8"
Woodpeckers' flagship combination square: a 12 × 8 inch aluminum square with a one-piece milled and ground tool-plate core, precision-pinned cheeks, and a shoulder design that lets the square sit hands-free on a board edge. Laser-engraved scales on both sides hold ±0.004 inch accumulated accuracy; angular accuracy is guaranteed to ±0.0085°.
$25-$35Mini Square
A compact 1-1/8 × 2 inch aluminum precision square sized for checking the edge of chisels, plane blades, and other cutting tools for square. Small enough for a shop-apron pocket, accurate enough for exacting hand-tool work. Made in Strongsville, Ohio.
$55-$6512-in-1 Pocket Layout Tool
A pocket-sized stainless-steel layout tool based on a 1927 Hutchison Manufacturing patent, revived and CNC-machined to modern tolerances. Two precision scales connect via a thumbwheel and align in 12 configurations for marking, gauging, squaring, and measuring. Total accumulated error held to 0.004 inch.
$75-$90Precision Triangle 4 & 6 Inch Set
A matched pair of 45-90-degree CNC-machined aluminum triangles in 4-inch and 6-inch sizes, held to ±0.0085° angular tolerance. Laser-engraved scales appear on both faces; brass connecting knobs and a wall-mountable MDF storage case are included.
$130-$165T-Square 24 Inch
A 24-inch CNC-machined aluminum T-square with a built-in edge-support lip that registers against a workbench or shelf for accurate crosscuts and layout lines. Laser-engraved scribing guides, shelf-pin hole guides, and a Rack-It wall-mount slot are machined directly into the aluminum stock.
